Your Best Tungsten-plated sucker rod Manufacturer

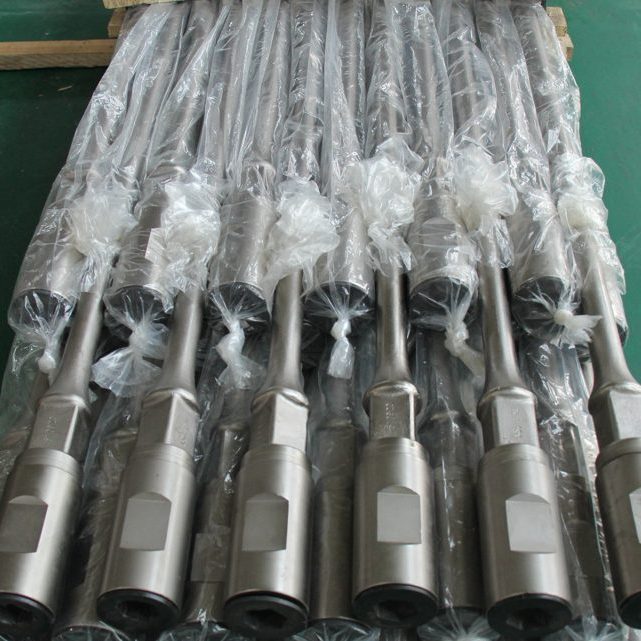

Tungsten-plated sucker rod

- Plating thickness ≥ 40 μ M
- Surface treatment: Composite tungsten plating
- Plating hardness: 940-1100HV
- CASS Test:no discoloration, pitting, cracks in 96 hours
- MOQ: 30 joints
- Delivery: 45 days

Sanjack: Your Premier Choice Of Tungsten-plated sucker rod

With the increase of working time, conventional sucker rods are prone to corrosion and eccentric wear during operation, and are not suitable for high-strength or harsh working conditions. To solve the eccentric wear and corrosive problems in oilfields, Sanjack developed various anti-corrosion and anti-abrasion products, including tungsten-plated sucker rod.

Sanjack: Your Best Place To choose Tungsten-plated sucker rod In China

Composite plating is to add insoluble particles (such as ceramic particles) to the plating solution on the basis of electroplating and electroless plating, so that the particles are deposited together with the coating, and the coating has the characteristics of both metal coating and particles.

Sanjack: The Advantages With Us You Should Know

1) High wear resistance. The hardness of the coating is 940-1100hv, and the wear resistance of the coating is greatly increased, which is far better than the chromium coating.
2) High anti-corrosion. Ni-W alloy has excellent corrosion resistance which leads the coating has no pinholes and microcracks to increase the protection ability.
3) Strong coating and plating adhesion
4) The max working temperature can reach 300℃.
5) The tungsten-plated sucker rod of Sanjack is especially suitable for high water cut oil wells with high corrosion and prone to eccentric wear.

Item	Parameter	Standards
Thickness	≥40μm	GB/T11354
Hardness	450～550HV	GB/T9790
CASS Test(Copper-accelerated acetic acid salt spray)	no discoloration, pitting, cracks in 96 hours	GB/T10125

We adopted advanced fourth-generation nickel-based tungsten plating technology. Compared with conventional anti-corrosion methods such as liner and internal spraying, tungsten plating has the characteristics of high hardness, high anti-corrosion, strong coating adhesion, and high working temperature.

Based on the advanced nickel-based technology, Sanjack composite plated products take the lead in China.

The following is the metallographic comparison of composite plating(left) and traditional tungsten plating(right).
